Description

Product details

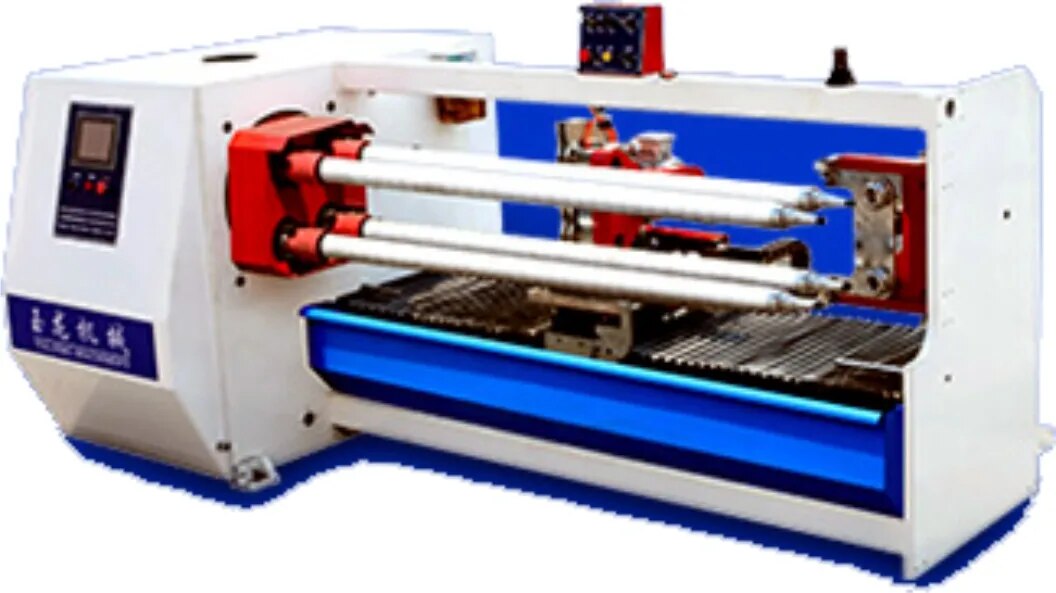

Application: This four shaft auto cutting machine is also suitable for foam tape, electrical tape, duct tape, foil tape, double sided tape, masking tape, cloth tape, fabric tape, PVC tape, BOPP tape, PE tape, PET tape, kraft paper tape, cellophane tape etc Feature : 1. Main driving part: Taiwan AC motor with inverter is employed. 2. Central control unit: Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting. 3. Operating panel: All functions are operated on the 10" LCD touch panel. 4. Motor control system: The central control system is PLC programmable controller. 5. Cutting positioning system: Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat. 6. Blade feeding positioning system: Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages. 7. Auto angle adjustment of circular blade: Mitsubishi servo motoris used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°). 8. Auto exchange device: cylinder-driven position spline gear is used to ensure fast & precise exchange; non-stop machine to save material loading & unloading time and improve efficiency. 9. Quick shaft change system: Three kinds of shafts are available and quick change of shafts is applied for different materials. Main Technical Parameters: Machine width 1.3M 1.6M Max. Cutting O.D. 180mm Inner core I.D. 1"-3" Min. Cutting width 1mm Blade diameter Φ200mm
