Description

Product details

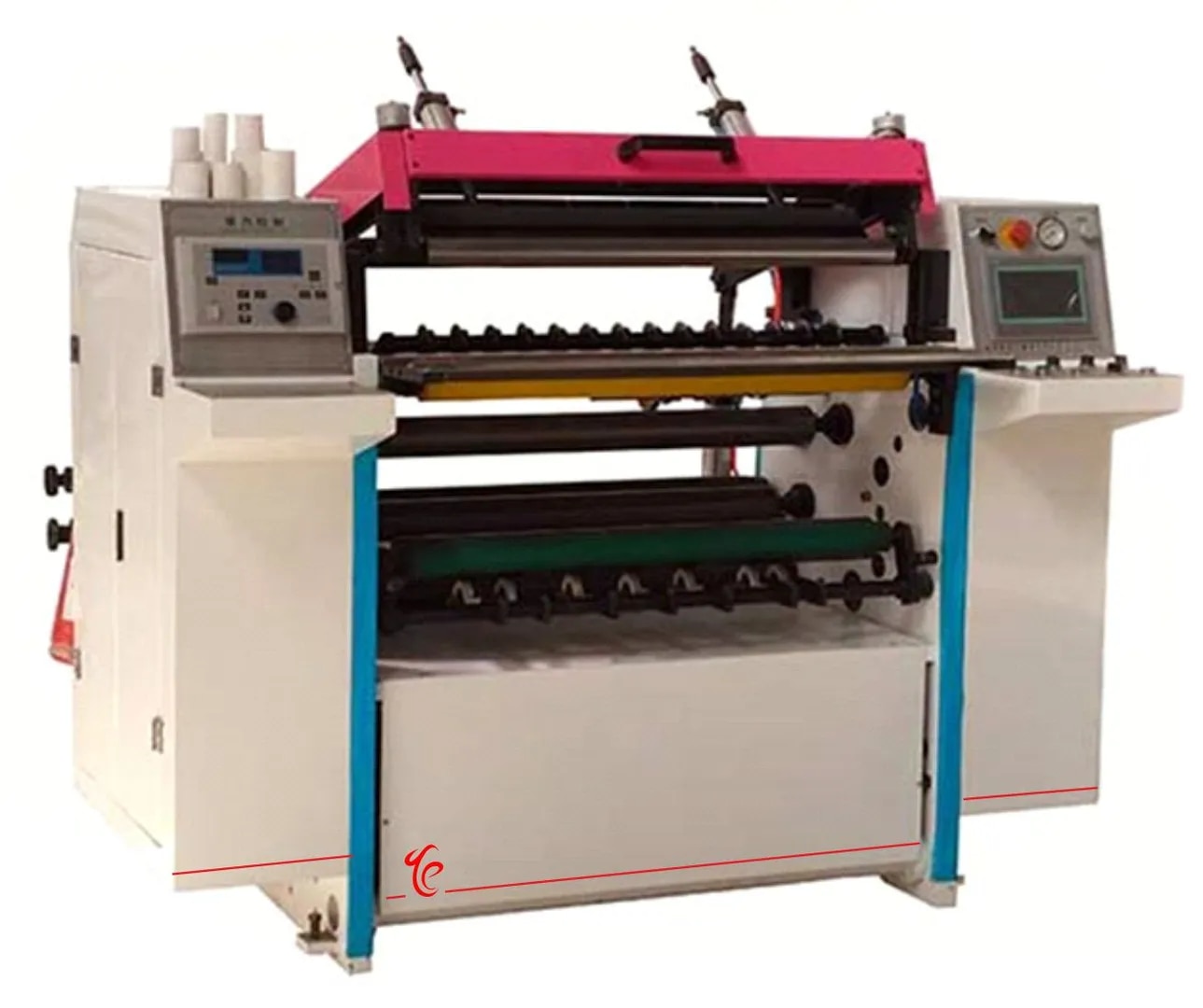

Application: This machine can slit at high speed, automatic making of thermal paper roll. Suitable for making POS roll, lottery ticket rolls, cash register rolls, invoice rolls, slitter, rewinder. Technical Description: Automatic Slitter rewinder has operating system interface and monitoring function Slitting with circular sheer cutting blades. The length/diameter settings via the touch screen. The whole stick rolls push out, cutting the rolls at set length position with automatic gluing device and Mark device with a uniform ink marker, mark length and width can be adjusted, low loss, easy operation, no leakage marking. Trim waste paper collect device with blower. 2 Automatic core loader device (standard) Unwinder： 1roll Unwinder core diameter： 76mm Web width： Max.900mm Web diameter： Max1000mm Slitter width: Min. 30mm Rewinder diameter: 30 - 180mm Rewinder core diameter： 12-25mm Air supply： ≥0.8 mpa Speed： 200m/min(1ply) Core shaft length： 900mm Core shaft Dia.： 12-25mm Speed： MAX.100 pcs/min Rewind Shaft Diameter: 12mm Spacer： 1set Knife seat： 10 pcs Blade knife： 10 pcs Bottom knife： 10 pcs
