Manufacturers of Hot Melt Coating Machines from India, Hot Melt Slot Die Machines, Tape Slitting Machines, Sticky Trap Machines, Trasy Enterprises is a firm managed by Technocrats with experience, spanning more than five decades. ...Read More

TRASY ENTERPRISES

Manufacturers of Hot Melt Coating Machines from India, Hot Melt Slot Die Machines, Tape Slitting Machines, Sticky Trap Machines, Trasy Enterprises is a firm managed by Technocrats with exper... read more

Our Products

This machine is designed for making Rat traps on boards with hot melt adhesive.Board size Min. and Max. 10” max. width and 4” min. widthCoating size 200mm (Max.) X 100mm (Min.) Max. Machine Speed 3 Pcs/min @ 18 gms per padMain Motor 1.0 KWMax Gluing Width 200 mmGlue Tank Capacity 5 kg/hrMachine Size 1000x650x1200mmPower Requirement 3 Kw, 415 V, 50 HZ, 3 Phasea) Glue melt tank1. The shell is made of steel, square steel and 1.2mm steel plate.2. Use aluminum alloy to build. Two-layer (upper and lower) structure. 3. Adopt high-temperature-resistant high-precision gear glue pump4. Adopt external precise filter.5. The glue pump speed is controlled by gear motor6. Temperature of each layer is controlled by PID system independently7. Max. temperature is 200℃8. Melt glue speed: 5 kg/hr (EVA.3000 centipoise 165℃)9. Heating power: app. 3 KW b) Hot Hose1. 2 m length hot melt hose provided. 2. 230V AC, 600 w power.c) Slot die1. Coating head: Slot die temperature-resistant alloy steel. SKD2102. Mounted on Pneumatic piston for up – down moment3. Coating width adjustment with shims insert4. Levelling in transfers direction to conveyor is provided.d) Transmission part1. Main motor: 1 HP 1 set 2. Glue pump motor: 0.5 HP 1 set 3. Main machine driven by use of belt, chain and gear to transmit.e) Pneumatic control part1. Cylinder on slot die, feeding and stopping with head: ￠50mm for each2. Suitable solenoid valves, flow control and connectors.f) Electric part1. Main machine VFD: 1 HP; 1 piece 2. Glue tank VFD: 1 HP; 1 piece3. Temperature controller: digital PID 4. Heaters: 6KW 5. Touch screen: 3” 1set 6. PLC: 1 set Watch Video : https://youtu.be/Um7g4RJegGs?si=v8bQUqZMqGA1a7Ef

Rat Glue Trap Making Mini Machine

INR 708000

The Rewind and Semi-Automatic Slicing Machine from Trasy Enterprises is purpose-built for precise cutting and rewinding of adhesive tapes, protective films, fabrics, nonwoven materials, and other roll-stock substrates. Designed for reliability and ease of use, it ensures smooth cutting surfaces with high efficiency, making it an ideal solution for manufacturers seeking consistent quality with minimal maintenance.Key FeaturesUser-Friendly Operation – Simple, manual cutting system ensures ease of use with high cutting efficiency.Powder Brake for Unwinding – Provides stable tension control for smooth operation.Circular Blade with Pneumatic Feeding – Guarantees clean, smooth, and accurate cuts.Cutting Width Gauge – Enables quick and stable positioning for precise cutting widths.Compact & Low-Maintenance Design – Small footprint with simple maintenance, offering both economy and efficiency.Technical SpecificationsEffective Width: 310 mmMaximum Unwinding Diameter: 550 mmMaximum Cutting Diameter: 180 mmCutting Width Range: 25 – 300 mmCore Inner Diameter: 3’’Motor Power: 1 HPTotal Power Consumption: 1.5 kW

Rewind and Semi-Automatic Slicing Machine for HDPE Fabric Tape with Liner

INR 240000

This machine is mainly used in: carton packaging, medical and health supplies, car lights, car interiors, filter, toys, arts and crafts. also the machine with the hot melt laminating machine and coating machine for courier bags, is widely used in the diaper, sanitary towel, package, shoes, furniture, tapes, labels, stickers and the mattress production line etc.SPECIFICATIONS FOR HOT MELT GLUE MACHINE WITH FOOT PADELTank Capacity 5.0 KG Max. malting rate 7.0 KGHOURMax. Operation temp. 200 ℃Melt Power 2160 WattMotor Power 250 Watt Air pressure 4-6 KGCM²Demension(L*W*H) 575*740*640 mmWeight 35 KgMax. Viscosity Cps 120,000 Gun Qty. 2 Power Requirement 230 VACPump Type Piston pump

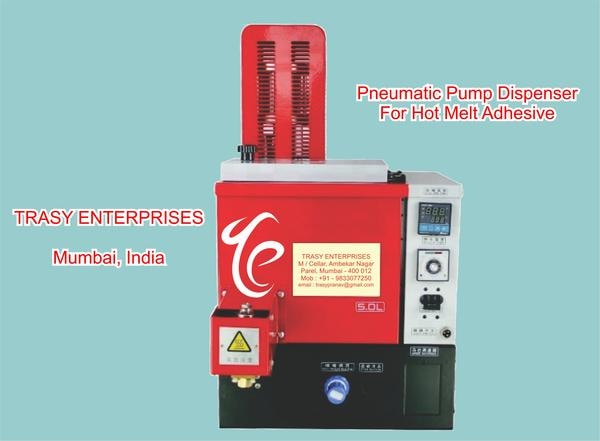

Hot Melt Adhesive dispenser Double Head

INR 150000

View All Products

about TRASY ENTERPRISES

about our organization

Manufacturers of Hot Melt Coating Machines from India, Hot Melt Slot Die Machines, Tape Slitting Machines, Sticky Trap Machines, Trasy Enterprises is a firm managed by Technocrats with experience, spanning more than five decades....Read More

89
Products Available

lATEST NEWS

Hot melt machines make production faster and smoot

Advantages of Hot Melts

Transform your tape production with our advanced C

Cello Tape Slitting Machine!

Trasy Enterprises offers a state-of-the-art, fully

HDPE Fabric Tape Manufacturing Line by Trasy Enterprises
