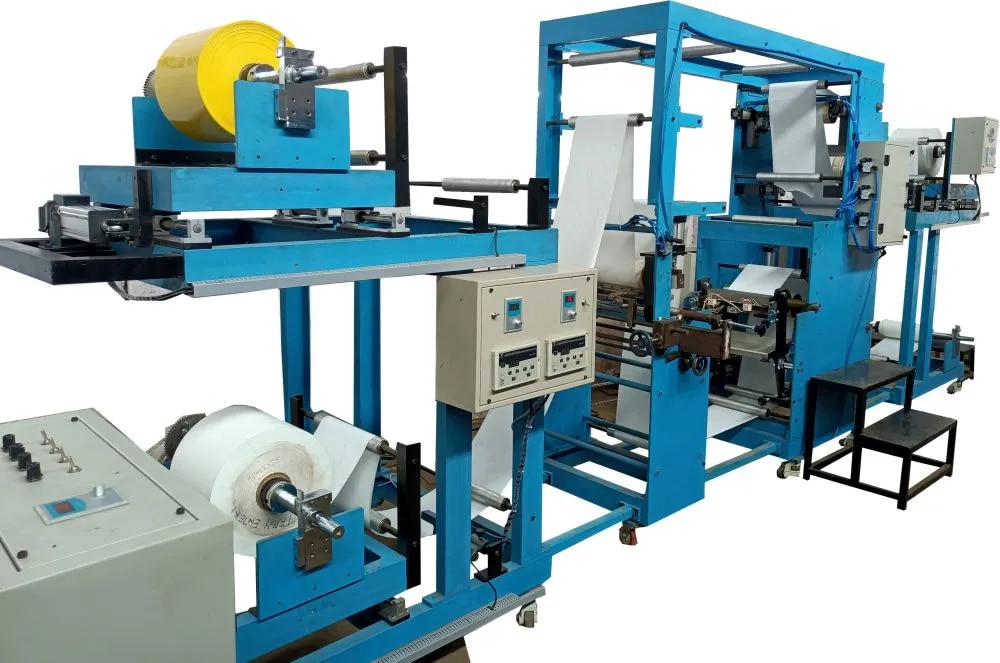

Hot Melt Coater Specification: This machine will make rolls of 300 mm (Max.) width & max 600mm dia. with 30 gsm hot melt coating. Process 1. Silicon paper of 300 mm will be coated with HM 30 gsm. 2. Lamination (transfer of HM on PVC) of Si paper & 0.270mm PVC film. 3. Winding of Si paper & PVC roll. Machine Type: Die coating Max. Size of coating: 300mm, GSM: 15 to 65 Max. Speed of coating : Speed 10 mpm @30gsm M/c specifications: 1. Unwind 1: ( 2Sets) To hold 310 mm max. width material. (Si Paper)450 mm Dia. Max. 76 MM core ID. Powder Brake Web Guide 2. Unwind 2: To hold 300 mm width material. (PVC of 0.27mm) 450 mm Dia. Max. 76 MM core ID. Powder Brake Web Guide 3. Coating Station: Die coating.( 2 Sets) Accurate Temp. Control. All silicon rolls dynamic balanced. Back up roller Pneumatically operated 4. Lamination Nip: Dynamic balanced Metal roll & Silicone roll Operation & pressure Pneumatic Drive to the nip 5. Rewind : for PVC + Si Paper To hold 310mm max. width material. 600 mm Dia. Max. 76 MM core ID. Tapper tension controlled winding. AC Drive for controlled winding. 6. Permelter: (2 Sets) Tank capacity 20 Lit. Melting Capacity 8 Lit/hr liquid tank capacity 5 Lit. Pump Capacity 0.4 Lit/Min Accurate Temp. Control. Accurate flow control 7. Hot melt Hose (2 Sets) To Supply 0.4 Kgs/hr Length 2 m Accurate Temp. Control. 8. Printing Stations: Machined & Fabricated from MS Plate. Heavy construction made, vibration less to suit 10 m/min coating speed. Idlers of Aluminum seamless pipe by machining. Rubber rolls pneumatically operated and controlled. 9. DIMENTIONS: 3 m X 2 m X 2 m Total Electrical Load : 20 Kw Punching Cutting machine Model : PC 5 Maximum web width : 300 mm Maximum Label Size : 10 mm to 24” in length Speed : 100 PPM depending on size Thickness of size : 400 micron Click the link to watch Machine in Running: https://youtu.be/We85mLoqtK4
