Description
Product details

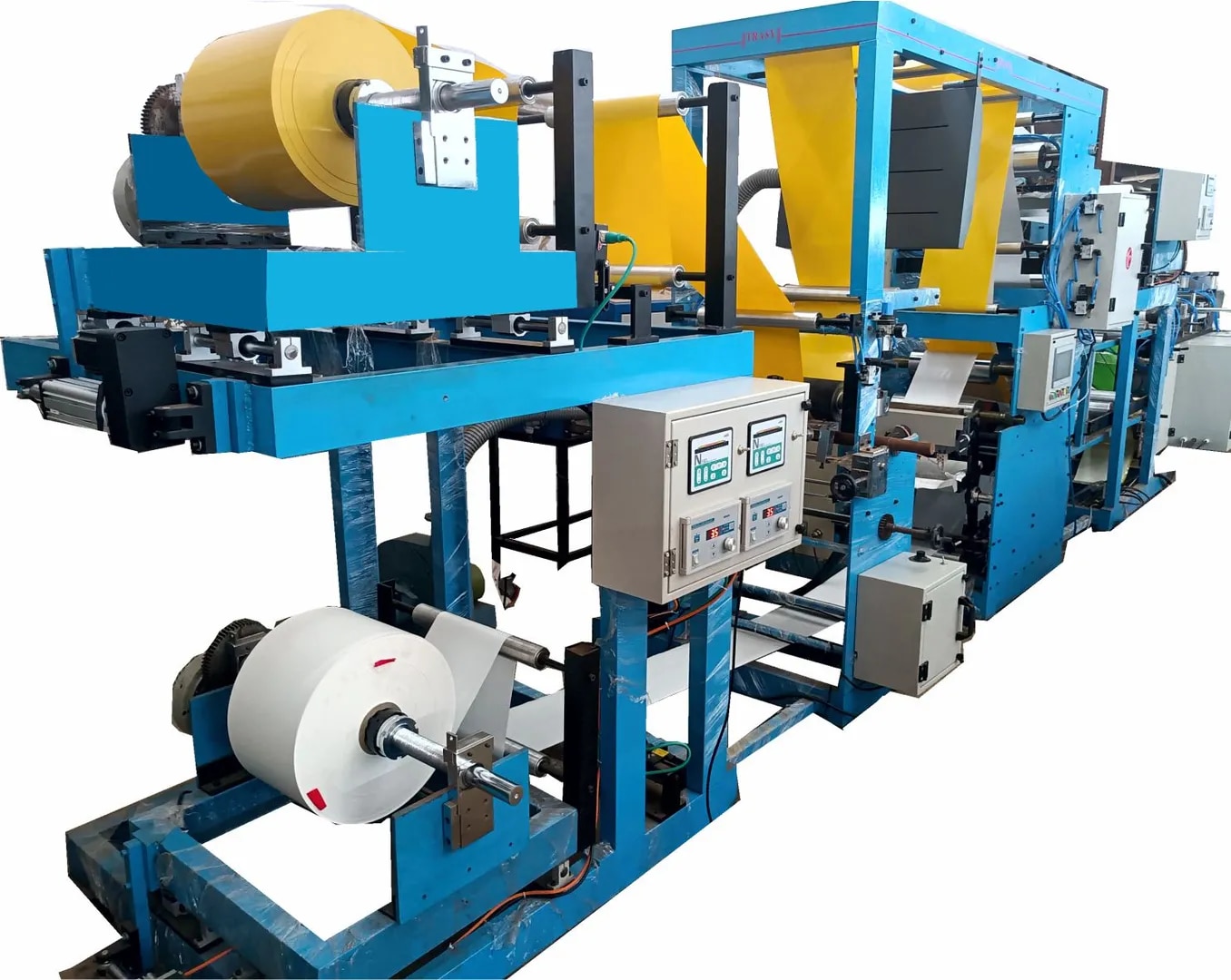

Machine Specification: This machine will make rolls of 300 mm (Max.) with 30 gsm hot melt coating. Process: All processes will be run inline. PVC film Printed with Gravure process. 2 rolls of Silicon paper of 290 mm will be coated with Hot Melt of 30 gsm. And Lamination (transfer of HM on PVC) of Si papers & 0.270mm PVC film. Hole Punching, Perforation and Cutting of Si papers laminated to PVC rolls in set of 25(setable) pcs. Machine Type: Die coating Max. Size of coating: 300mm, GSM: 15 to 65 Max. Speed of coating : Speed 15 mpm @30gsm M/c specifications: Unwind 1: ( 2Sets) To hold 310 mm max. width material. (Si Paper)450 mm Dia. Max. 76 MM core ID. Powder Brake Web Guide Unwind 2: To hold 300 mm width material. (PVC of 0.27mm) 450 mm Dia. Max. 76 MM core ID. Powder Brake Web Guide Coating Station: Die coating (2 Sets) Accurate Temp. Control. All silicon rolls dynamic balanced. Back up roller Pneumatically operated Lamination Nip: Dynamic balanced Metal roll & Silicone roll Operation & pressure Pneumatic Drive to the nip Cutting: A accumulator provided for the coated material To punch 1 hole of 5 mm and Perforation line for easy tear. Pneumatically cut to the set size. Permelter: (2 Sets) Tank capacity 20 Lit. Melting Capacity 8 Lit/hr liquid tank capacity 5 Lit. Pump Capacity 0.4 Lit/Min Accurate Temp. Control. Accurate flow control Hot melt Hose (2 Sets) To Supply 0.4 Kgs/hr Length 2 m Accurate Temp. Control. 8. DIMENTIONS: 4 m X 2 m X 2 m 9. Total Electrical Load : Motors 7 HP, Heaters 7.5 KW
