Home Products RTT2 Hot Melt Coating And Lamination Machine
Main features: 1.
Main features: 1.
COD not available
Hot Melt Coating Machine

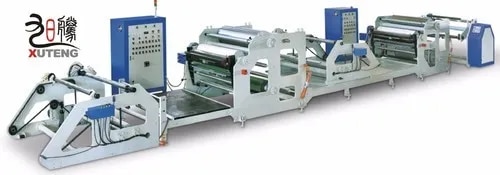

RTT2 Hot Melt Coating And Lamination Machine

INR 6000000
Share with
Share this on :

Description

Product details

Main features: 1. To extend the design of the distance between the second unwinding and the composite makes the edge effect more ideal. 2. The unwinders use EPC. 3. Unwind is equipped with electric lifting material function Application: RTS hot melt adhesive lamination machine is mainly used in stickers products, such as stickers trademark paper, double-sided tape, foam tape, cloth tape , Kraft paper tape, the US profile paper tape, fiber tape, etc. Technical parameters: Type No. RTS Coating width 400-2500mm Coated cloth amount 10-200 g / ㎡ Coating speed 80 M / min Unwinding diameter 1000mm Winding diameter 1000mm Correction device 1sets Length 8400mm Height 2350mm

  • Filter tags

Other Products

Related Products

A. Applied range: DRT1100 Hot Melt Coating Machine Suitable for fabric compound production。 B. Technical parameters: 1. Coating method: Carving roll transfer coating (hot melt glue is coated on rollers with dot, then transferred to material) 2. Max. available coating width: 1300mm 3. Coating quality: 10-50g/m2（The amount of glue applied depends on the carving state of the carving roll.） 4. Max. line speed: 50m/min 5. Length of all roller surface: 1400mm 6. Max. rewinding diameter:600-800 mm (depends on your coating weight) 7. Max. unwinding diameter: 1000mm 8. Unwinding equipment: 2 set 9. Rewinding equipment: 1 set 10. RP120 hot melt sprayer: 1 set , 11. Melt glue speed: 120kg/h (EVA.3000 centipoise 165℃) 12. Length of glue-carrying pipe: 4m (1 piece) 13. Temperature: 230℃ 14. Power: app. 40KW 15. Power supply: ~415V±15% 50Hz 16. The quantity of glue can be adjusted independently or synchronously with the main machine 17. Oil temperature heater 24KW 1set C. Main working parts a) Machine rack 1. The first, second unwinding stand is made of square steel, U steel and steel plate. 2. The machine rack is made of 25mm steel plate, supported by steel tube. 3. The transmission part cover is made of 1.5mm steel plate. b) First and second unwinding part 1. Adopt single mechanism unwinding design 2. Magnetic powder brake for unwinding: 100N·M; 2 set (WREZUN Taiwan) 3. Tension control system is Automatic tension control system, 2 set (Ruian Zhongxing) 4. Unwinding shaft: 3″ air shaft; 2 pieces. 5. First unwinding can lift electrically, adopts one set of photoelectric EPC edge position system (Bianfu China),the second unwinding is use semi-auto control. c) Rewinding part 1. Adopt double mechanism unwinding design 2. Magnetic powder brake for unwinding: 100N·M; 1set (WREZUN Taiwan) 3. Manual tension control equipment: 1 set (KRD taiwan) 4. Manual deviation correcting equipment: 1 set 5. Rewinding shaft: 3″ air shaft; 1 pieces 6. Rewinding length can be controlled automatically or manually d) Glue melt tank(RP120) 1. The shell is made of U steel, square steel and 1.2mm steel plate. 2. Use aluminum alloy to build. Two-layer (upper and lower) structure. There is adhibition preventing coat on the inside surface. 3. Adopt high-temperature-resistant high-precision gear glue pump 4. Adopt external precise filter. 5. The glue pump speed is controlled by gear motor 6. Adopt high precision filter which is set outside 7. Temperature of each layer is controlled by PID system independently 8. Max. temperature is 210℃ 9. Melt glue speed: 180kg/h(EVA.3000 centipoise 165℃) 10. Heating power: app. 25KW e) Coating, laminating & roller part 1. Coating head: Carving roll transfer coating (hot melt glue is coated on rollers with dots, then transferred to raw material) 2. carving roller: ￠ 215mm silicon rubber roller with 2 rotary connector （Customized Coating Quantity Provided by Customers） 3. Cooling roller: ￠215mm chromed steel roller with 2 rotary connector 4. Laminating roller: ￠215mm silicon rubber roller with 2 rotary connector 5. Expandable roller:2pcs(silicon) 6. Guide roller: ￠80mm aluminum roller, surface anodic protection 7. Coating roller bearing: NSK, Japan a) Transmission part 1. Main motor: 4KW 1 set (Anhui Wannan) 2. Coating roller motor：2.2kW 1set (Taiwan CPG motor) 3. Glue pump motor: 2.2KW 1 set (Taiwan CPG motor) 4. Unwinding lift motor: 1.5KW 1set each stand 5. Main machine use belt, chain, and gear to transmit b) Pneumatic control part 1. Cylinder on coating head: ￠63mm 2 pieces 2. Cylinder on laminating press roller: ￠100mm 2 pieces c) Electric part 1. Main machine transducer: 3.7 KW; 1 piece (Inovance china) 2. Coating roller motor transducer: 2.2KW; 1 piece (Inovance china) 3. Glue tank transducer: 2.2KW; 1 piece (Inovance china) 4. Temperature controller: digital PID (telta Taiwan) 5. Heater (coating head): 8KW 6. Touch screen: 10” 1set (weinview Taiwan) 7. PLC: 1 set (Inovance china) 8. Knob switch: several pcs Schneider, France 9. Oil temperature heater 24KW 1set
View Details
Hot Melt Dot Coating Machine

INR8260000

This machine is designed to make EVA hot melt adhesive film. The Eva hot melt film consist of wax, tackifying resin, EVA resin and auxiliary agent. It is heated and coated on the release liner in the molten form. After passing it through the chilling roll it will get solidified and a film is formed. This film has the characteristics of high bonding strength, good thermal stability, fracture resistance and High tension.
Buy Now
Add to cart
View Details
EVA Hot Melt Film Manufacturing Machine

INR1800000

• Trasy Enterprises, Mumbai is one of the leading manufacturers of the Hot Melt Pressure Sensitive Adhesive Coating and Punching Machines for making bulk, wholesale topical and Transdermal Skin Contact Patches. • Using Hot Melt Adhesive technology with medicine is a better solution for Transdermal Patches. The medicines are to be dissolved in oil then this mixture of oil is added to the Hot Melt Adhesive. Mixed thoroughly and made homogeneous. This medicated adhesive is used with Hot Melt Coating Machine to coat the required grammage on the release liner. Then it is laminated to the backup material. The laminate is then punched or cut to the desired size and shape. • They are packed in PET, Aluminium and LDPE laminated pouches for barrier properties. These patches are now Water resistant, Hypoallergenic, Easy to peel off, Easy to clean, the herbal content is thick, durable and sweat resistant. Same process is used for Herbal
View Details
Transdermal Patch Making Machine

INR960000
