Home Products Straw Paper Slitting Machine
Slitting speed :
Slitting speed :
COD not available
Slitting Machine by Trasy

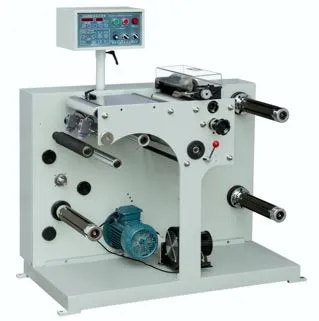

Straw Paper Slitting Machine

INR 849600
Share with
Share this on :

Description

Product details

Slitting speed : 20-90m/min Max roll width ： 520mm Min slitting width ： 8mm Max unwinding diameter： 500mm Max rewinding diameter： 500mm Core diameter : 3inch Slitting precision ： ±0.1mm Machine weight ： 800kg Voltage ： 220v Main power : 1.5KW Total power : 3KW Main motor 1.5KW 1pc Web guider 1set Unwinding magnetic powder brake 2.5KG 1set Rewinding magnetic powder brake 2.5KG 2sets Length counter 1pc VFD 1.5KW 1pc Razor blade 70pcs
